Takisawa Taiwan NEX Series

Call for product availability
1 800 567-5858

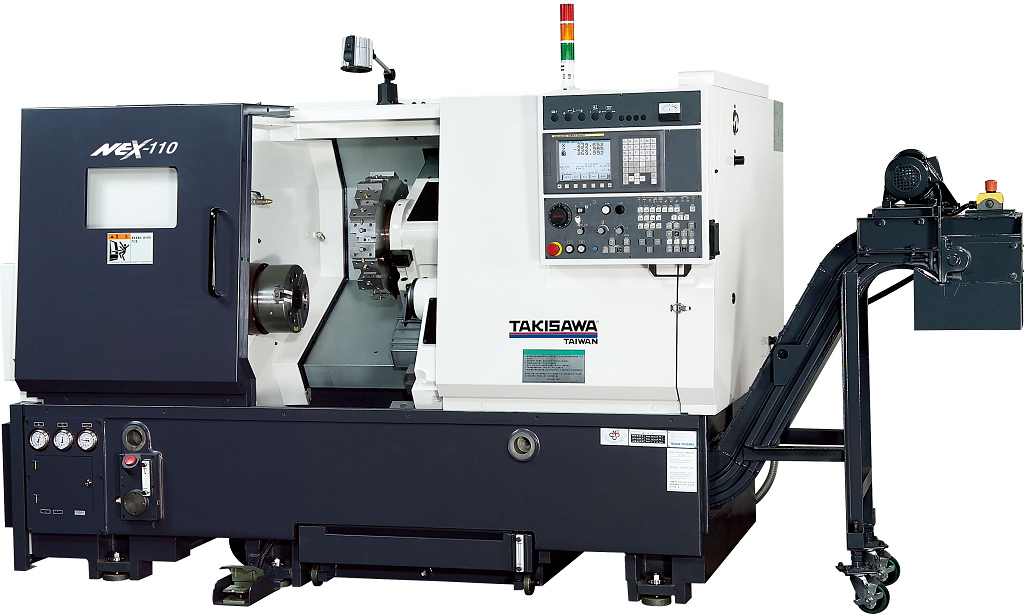

Takisawa NEX Series

Details

Controller Fanuc
Linear guide ways
Y axis option
Live tools option

Capacity:

Max. Swing 13.8″ to 24″ (350 mm to 610 mm)
Max. Turning Diameter 9.45″ to 15.7″ (240 mm to 400 mm)
Max. Turning Length 13.8″ to 28″ (350 mm to 710 mm)
Max. Bar Work Capacity 1.7″ to 3″ (43 mm to 3 mm)

Travel:

X Travel 5.51″ to 9″ (140 mm to 230 mm)
Z Travel 13.77″ to 28″ (350 mm to 710 mm)

Spindle:

Spindle Speed 3,500 RPM to 5,000 RPM
Spindle Nose Flat 140 to A2-8
Spindle Motor 10/7.5 HP to 30/20 HP (7.5/5.5 kW to 22/15 kW)
Chuck Size 6″ to 10″ (152 mm to 254 mm)

Download the technical sheet Web site

Assembly At BV, machine tools are assembled in our warehouse, which allows our customers to maintain their production rate. BV Machinery also ensures the compliance of machine tools. Training Did you know that we offer all our customers personalized training for each machine tool sold? BV Machinery makes sure our customers know their equipment inside and out. Installation Installation is the only step performed on BV Machinery customers’ premises. This makes the company stand out from its competitors and has the advantage of not cluttering up customer production sites, in addition to helping maintain production rate until the machine tool has been installed. After-sales service Do you have a problem? Or a question? BV Machinery will help you remotely or come to you to address your needs. And to ensure the longevity of your machine tools, a team of specialists guarantees a continuous and meticulous maintenance and repair service. BV Machinery also maintains a complete inventory of parts to support its technical service and get its customers’ machine tools back into operation.
